China SINO AGE DEVELOPMENT TECHNOLOGY, LTD. logo
SINO AGE DEVELOPMENT TECHNOLOGY, LTD.
Sino Age Development Technology Our products are your best choice in NDT and quality control field All products supplied by SADT have excellent quality and competitive price with our best service.
Site Member

14 Years
Home > Portable Hardness Tester >

Cable Probe Wireless Probe Portable Hardness Tester Digital

Product Categories
SINO AGE DEVELOPMENT TECHNOLOGY, LTD.
Contact Now

Cable Probe Wireless Probe Portable Hardness Tester Digital

Brand Name : ＳＡＤＴ

Model Number : HARTIP 2500

Certification : CE SGS ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : USD350-750

Payment Terms : T/T, Western Union, paypal

Supply Ability : 500 pcs /month

Delivery Time : 3-7 working days

Packaging Details : Carry case with carton

Principle : Leeb hardness measurement

Accuracy / Repeatability : ±0.3% @ HL=800 / ±2HL

Hardness scale : HL/HRC/HRB/HB/HV/HS/HRA/σb

Measuring range : HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / HRA7-88.5 / σb(rm)24-6599N/mm2

Materials and conversion curves : 11 common metal materials, 75 curves

Memory : 999 data

Power supply : AA alkaline battery / USB power supply

Standards : Conforming to ASTM A956, DIN 50156, GB/T 17394-1998

Contact Now

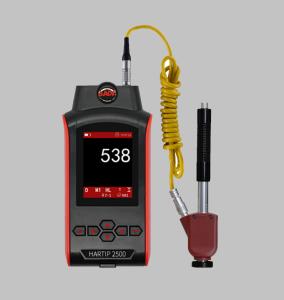

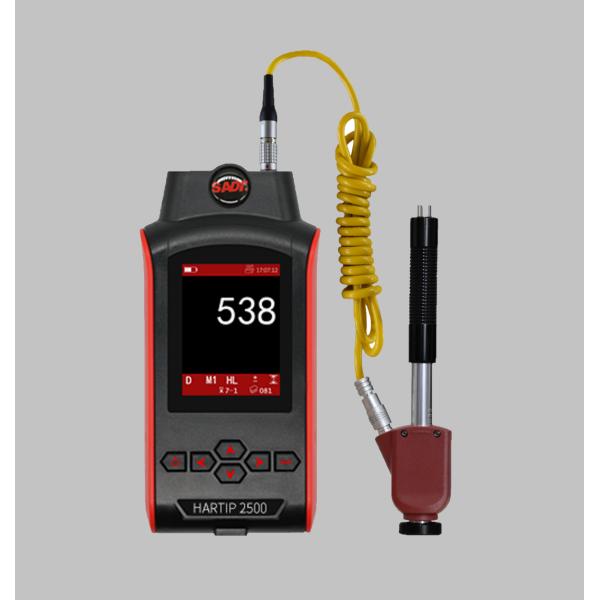

Portable Hardness Tester HARTIP 2500+ With Digital Probe D and wireless probe D

HARTIP 2500 is an innovation of traditional Leeb hardness tester, which based on our patent technology inside probe. All probes worked with HARTIP 2500 are modularized digital probe, which gives more accurate hardness value. Besides, HARTIP2500 can also work with our wireless probe and new RP reading probe as optional.

Advantages
›› Equipped with digital probes only
›› Cost- effec tive with reading probe (optional)
›› High repeatability accuracy: +/-2 HL (or 0.3% @HL800)
›› High linear accuracy for any angles
›› TFT color display
›› Auto compensate error for different impact direction
›› Powered by AA batter y or USB power supply
›› The tester can be attrac ted to the workpiece with magnetic base (optional)
›› Statistics value can be calculated automatically
›› Data managing sof tware on PC
›› Power on/off automatically or manually

Specifications

Model SADT HARTIP 2500
Principle Leeb Hardness Measurement
Accuracy/Repeatability ±0.3% @ HL=800 / ±2HL
Display High Contrast Color TFT 240 X 320
Hardness Scale HL / HRC / HRB / HB / HV / HS / HRA / Σb
Measuring Range HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / HRA7-88.5 / Σb(Rm)24-6599N/Mm2
Probe Digital Probe D/ C / DC / D+15 / DL / E Wireless Probe D C/DC/D+15/DL/E (Optional), Reading Probe D (Optional)
Materialsand Conversion Curves 11 Common Metal Materials, 75 Curves
Memory 999 Data
Statistics Function Average / Max. / Min. / S. Value
Re-Calibration Allowed By User
Indicator Low Battery
Language English, German
Interface USB / Bluetooth (Optional)
Power On/Off Auto / Manual
Power Supply AA Alkaline Battery / USB Power Supply
Working Environment -20ºC~+70ºC
Dimension(Mm) 145x70x30
Net Weight(G) 145
Standards Conforming To ASTM A956, DIN 50156, GB/T 17394-1998

Standard package


HARTIP 2500
HARTIP 2500 main unit 1
Digital probe D 1
Test block D 1
Small support ring 1
Cleaning brush 1
Probe cable 1
USB cable 1

HARTIP2500
Operation manual 1
Test Certificate 1
Carrying case 1


Optional accessories


Digital probe C/DC/D+15/DL/E
Reading probe D
Wireless probe D C/DC/D+15/
DL/E
Special support rings
Standard support ring for
probe D
Small support ring
Impact body D
Carbide ball tip D
Test block D with certificate
Test block D w/o certificate

Cable Probe Wireless Probe Portable Hardness Tester DigitalCable Probe Wireless Probe Portable Hardness Tester Digital

Cable Probe Wireless Probe Portable Hardness Tester Digital

Cable Probe Wireless Probe Portable Hardness Tester DigitalCable Probe Wireless Probe Portable Hardness Tester DigitalCable Probe Wireless Probe Portable Hardness Tester DigitalCable Probe Wireless Probe Portable Hardness Tester DigitalCable Probe Wireless Probe Portable Hardness Tester Digital
